Nanoleaf Hardware

Transform your space with modular smart lighting. FaustBot integrates with Nanoleaf panels to create stunning visual effects that react to your stream events and music.

View Integration Guide

What You Can Do With FaustBot

FaustBot provides deep integration with Nanoleaf, giving you full control through actions, triggers, and scripting.

💡

Panel Control

Actions

Set colorSet brightnessSet effectPower on/off

Triggers

Panel state changed

✨

Effects & Scenes

Actions

Play effectStop effectSet custom animationApply scene

Triggers

Effect changed

👆

Touch Events

Actions

Respond to touch

Triggers

Panel touchedSwipe detected

Scripting Examples

💡 Panel Control ✨ Effects & Scenes 👆 Touch Events

# Set panel color based on stream event
def Execute():
    event = CPH.GetArg("event")
    if event == "subscriber":
        CPH.NanoleafSetColor("#00FF00")
        CPH.NanoleafSetBrightness(100)
    elif event == "raid":
        CPH.NanoleafSetEffect("Fireworks")
    return True

# Cycle through scenes on timer
def Execute():
    scenes = ["Gaming", "Chill", "Alert"]
    current = CPH.GetGlobalVar("nanoleaf_scene", 0)
    next_scene = (current + 1) % len(scenes)
    CPH.NanoleafApplyScene(scenes[next_scene])
    CPH.SetGlobalVar("nanoleaf_scene", next_scene)
    return True

# React to panel touch events
def Execute():
    gesture = CPH.GetArg("gesture")
    panel_id = CPH.GetArg("panelId")
    if gesture == "tap":
        CPH.SendMessage(f"Panel {panel_id} tapped!")
    elif gesture == "swipe":
        direction = CPH.GetArg("direction")
        CPH.NanoleafNextEffect() if direction == "right" else CPH.NanoleafPrevEffect()
    return True

Light Panels

Modular smart lighting designed for creative spaces and streaming setups.

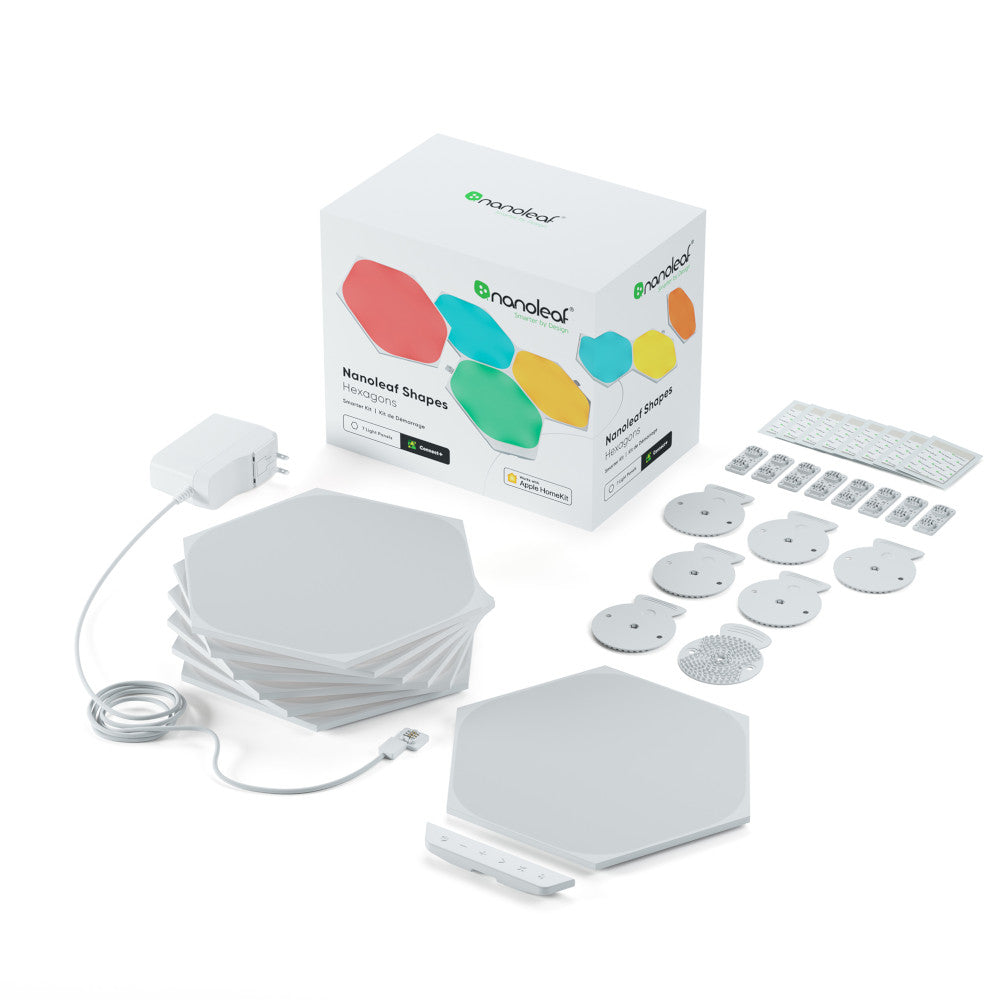

Nanoleaf Shapes Hexagons

Modular hexagon light panels that create stunning honeycomb-style wall art. Touch-enabled with millions of colors and dynamic scenes.

9 hexagon panels
16M+ colors
Touch reactive
Rhythm music sync
Connect up to 500

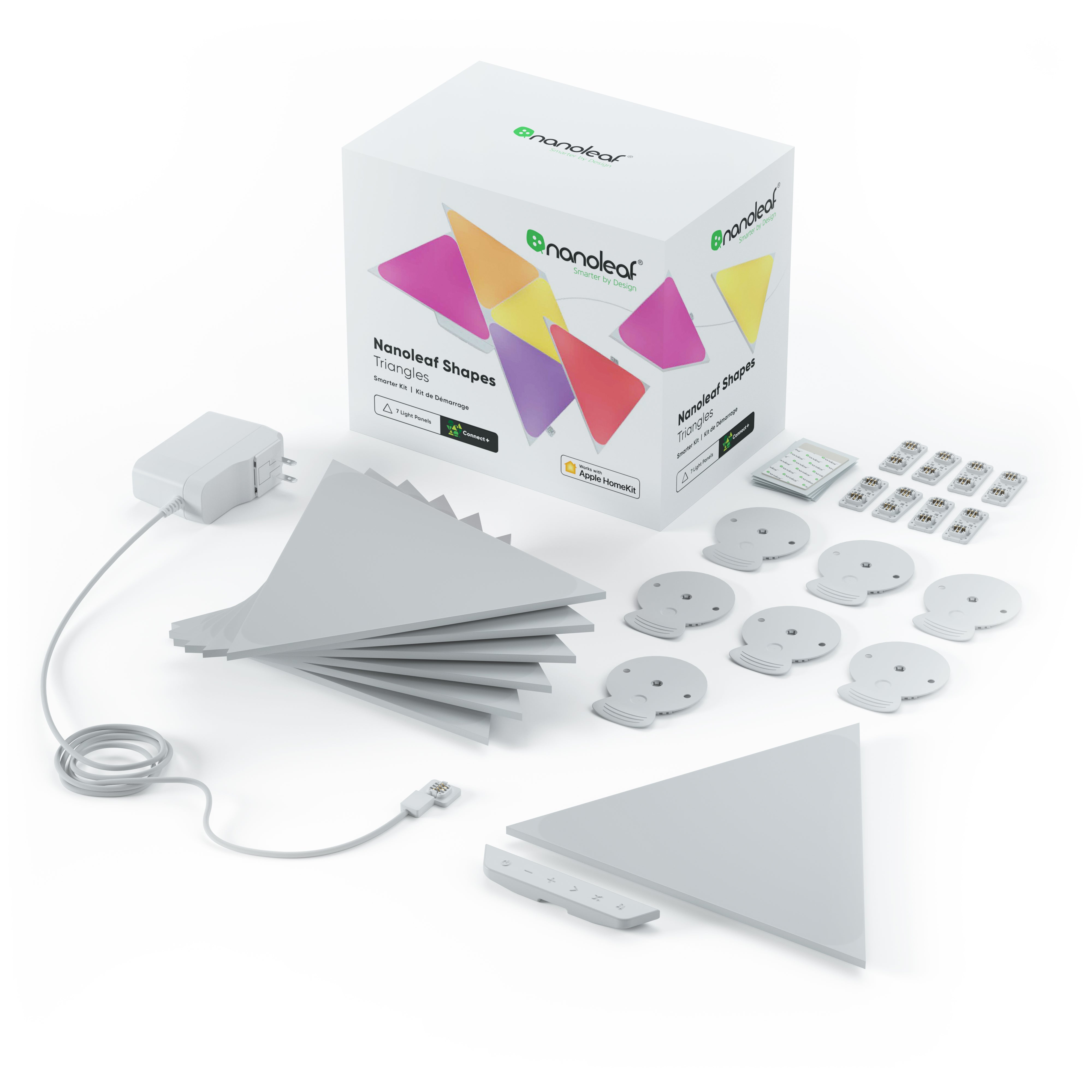

Nanoleaf Shapes Triangles

Bold geometric triangular light panels for creative wall installations. Perfect for gaming setups and content creator studios.

9 triangle panels
Touch enabled
Screen mirror
Voice control
Modular design

Nanoleaf Canvas

Square light panels with advanced touch interaction and gesture controls. Create interactive wall displays that respond to your touch.

9 square panels
Touch controls
Gaming integration
Screen mirror
Gesture support

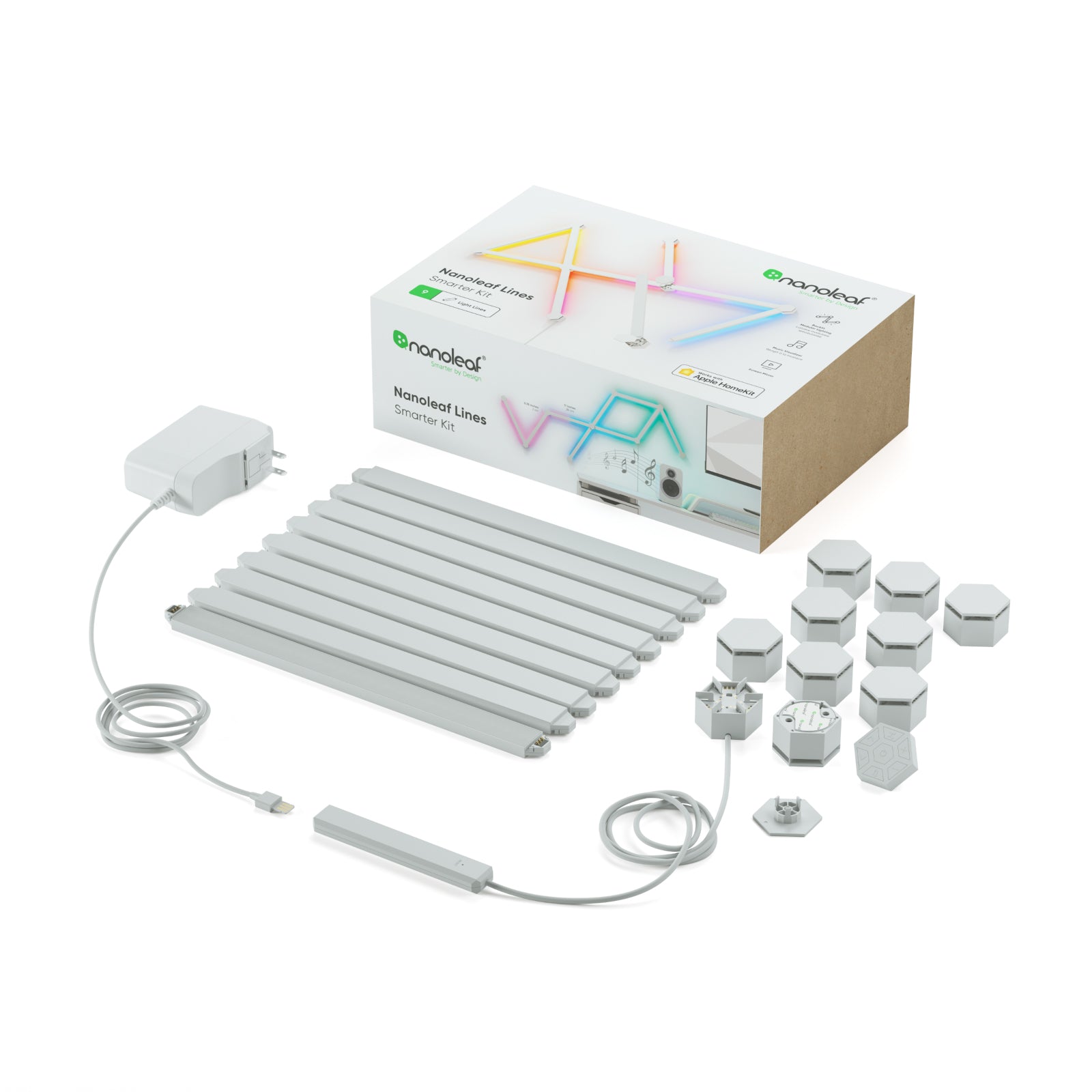

Nanoleaf Lines

Backlit modular light bars that create sleek, linear geometric patterns. Features gradient illumination and customizable layouts.

9 light lines
Gradient effects
16M+ colors
Backlit design
Flexible angles

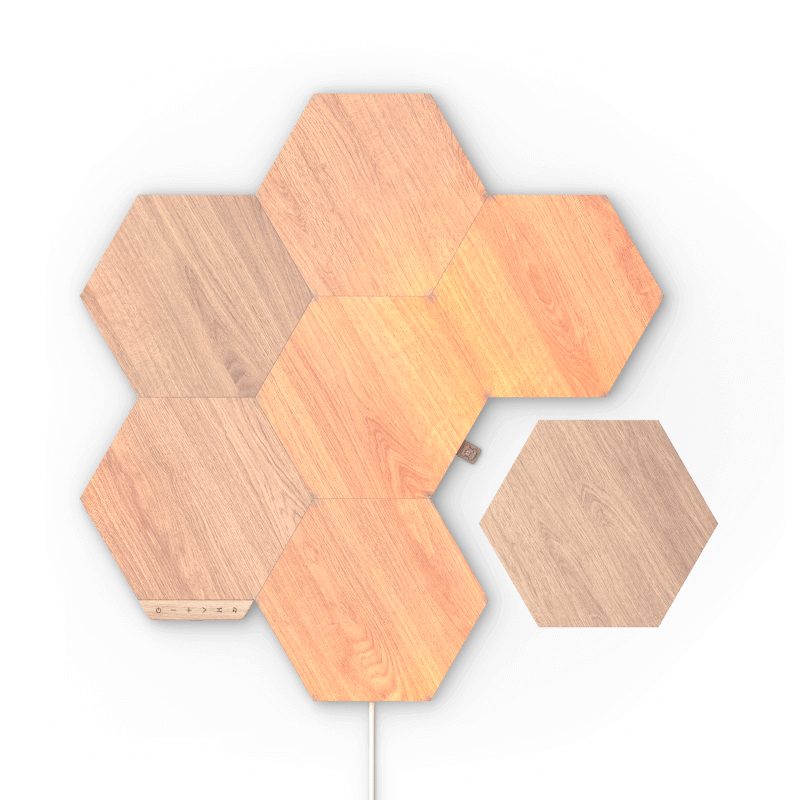

Nanoleaf Elements

Wood-look hexagon panels that blend smart lighting with natural aesthetics. Real wood veneer for a warm, organic ambiance.

7 hexagon panels
Real wood veneer
Warm white focus
Touch enabled
Natural design

What FaustBot Can Do

FaustBot gives you full control over your Nanoleaf panels. Set colors, trigger effects, and create dynamic lighting that reacts to your stream events.

Actions

Set Color Set any RGB color with smooth transitions
Set Brightness Adjust brightness from 0-100%
Set Effect Apply built-in Nanoleaf effects and scenes
Toggle Power Turn panels on or off
Set Color Temperature Adjust warm to cool white tones

Triggers

Output only — controlled via actions

Examples

Color React on Event Flash panels when someone subscribes

def Execute():
    # Store current color
    original = CPH.NanoleafGetColor()
    # Flash green for new sub
    CPH.NanoleafSetColor("#00FF00")
    CPH.NanoleafSetBrightness(100)
    CPH.Wait(500)
    CPH.NanoleafSetColor("#FFFFFF")
    CPH.Wait(500)
    CPH.NanoleafSetColor(original)
    return True

Raid Alert Effect Trigger a dramatic effect when you get raided

def Execute():
    raider_count = CPH.GetArg("viewers")
    if raider_count > 50:
        CPH.NanoleafSetEffect("Fireworks")
    else:
        CPH.NanoleafSetEffect("Color Burst")
    CPH.Wait(10000)
    CPH.NanoleafSetEffect("Stream Mode")
    return True

Ready to Connect Your Nanoleaf Panels?

FaustBot makes it easy to create stunning light shows that respond to your stream events.

Nanoleaf Setup Guide Lighting Actions
