Logitech G Hardware

Sync your stream with Logitech G LIGHTSYNC technology. Control RGB lighting across keyboards, mice, headsets, and speakers with stream events and chat commands through FaustBot.

View Integration Guide

What You Can Do With FaustBot

FaustBot provides deep integration with Logitech G LIGHTSYNC, giving you full control through actions, triggers, and scripting.

💡

LIGHTSYNC Control

Actions

Set device colorsApply effectsSet brightnessScreen sampler

Triggers

State changed

⌨️

Keyboard Effects

Actions

Set key zonesWave effectBreathing effectCustom animations

Triggers

Key pressed

🔊

Speaker Integration

Actions

Set speaker RGBAudio visualizerSync with content

Triggers

Audio level changed

Scripting Examples

💡 LIGHTSYNC Control ⌨️ Keyboard Effects 🔊 Speaker Integration

# Set LIGHTSYNC colors on stream events
def Execute():
    event = CPH.GetArg("event")
    if event == "subscriber":
        CPH.LogitechSetColor("#00FF00")
        CPH.LogitechApplyEffect("Pulse")
    elif event == "raid":
        CPH.LogitechSetColor("#FF00FF")
        CPH.LogitechApplyEffect("Wave")
    return True

# Keyboard lighting based on game events
def Execute():
    zone = CPH.GetArg("zone")
    CPH.LogitechSetKeyZone(zone, "#FF5500")
    CPH.LogitechApplyEffect("Breathing", zone)
    CPH.Wait(3000)
    CPH.LogitechResetZone(zone)
    return True

# Sync G560 speakers with stream alerts
def Execute():
    alert_type = CPH.GetArg("type")
    if alert_type == "donation":
        CPH.LogitechG560SetColor("#FFD700")
        CPH.LogitechG560EnableVisualizer(True)
        CPH.Wait(5000)
        CPH.LogitechG560EnableVisualizer(False)
    return True

Keyboards

Logitech G mechanical keyboards with LIGHTSYNC RGB technology.

G915 LIGHTSPEED

Wireless low-profile mechanical keyboard with advanced LIGHTSYNC.

Low-profile GL switches
LIGHTSPEED wireless
Per-key LIGHTSYNC RGB
30+ hour battery

G915 TKL

Compact wireless mechanical keyboard with premium design.

Tenkeyless design
LIGHTSPEED wireless
Per-key RGB lighting
40-hour battery

G715

Wireless gaming keyboard with cloud-soft palm rest.

GX mechanical switches
LIGHTSPEED + Bluetooth
Cloud palm rest
Per-key RGB

G Pro X

Pro-grade tenkeyless keyboard with swappable switches.

Hot-swappable switches
Compact TKL design
LIGHTSYNC RGB
Detachable cable

FaustBot Integration for Keyboards

FaustBot provides full LIGHTSYNC RGB control and G-key macro triggers for Logitech G keyboards, enabling dynamic lighting effects synced to stream events and programmable hotkeys.

Actions

Set Keyboard Color Apply solid colors or gradients across the entire keyboard
Set Key Zone Control lighting for specific key zones (WASD, function row, numpad)
Apply Effect Trigger wave, breathing, color cycle, and reactive effects
Set Per-Key RGB Individual key color control for custom layouts

Triggers

G-Key Pressed Fires when any programmable G-key is pressed
G-Key Released Fires when a G-key is released for hold-based actions
Profile Changed Detects when G Hub profile switches

Example Use Cases

Example 1 Example 2

# Flash keyboard on new subscriber
def Execute():
    CPH.LogitechSetKeyboardColor("#00FF00")
    CPH.LogitechApplyEffect("Pulse", 3)
    CPH.Wait(2000)
    CPH.LogitechResetKeyboard()
    return True

# G-key stream controls
def Execute():
    key = CPH.GetArg("gKey")
    if key == "G1":
        CPH.ObsSetScene("Starting Soon")
    elif key == "G2":
        CPH.ObsSetScene("Main Gameplay")
    elif key == "G3":
        CPH.TwitchSendMessage("Thanks for watching!")
    return True

Gaming Mice

Precision gaming mice with HERO sensors and LIGHTSYNC RGB.

G Pro X Superlight 2

Ultra-lightweight wireless mouse for esports.

60g ultra-lightweight
HERO 2 sensor
LIGHTSPEED wireless
95-hour battery

G502 X Plus

Premium wireless gaming mouse with LIGHTFORCE switches.

LIGHTFORCE hybrid switches
HERO 25K sensor
LIGHTSYNC RGB
Adjustable weight

G502 HERO

High-performance gaming mouse with advanced HERO 25K sensor.

HERO 25K sensor
11 programmable buttons
Adjustable weight
LIGHTSYNC RGB

G705

Wireless gaming mouse designed for smaller hands.

Contoured design
LIGHTSPEED + Bluetooth
6 programmable buttons
LIGHTSYNC RGB

G309 LIGHTSPEED

Ultra-lightweight wireless mouse with HERO 25K sensor.

68g lightweight
HERO 25K sensor
LIGHTSPEED wireless
300-hour battery

FaustBot Integration for Gaming Mice

FaustBot enables RGB lighting control and programmable button triggers for Logitech G mice, letting you react to stream events with visual feedback and create custom button shortcuts.

Actions

Set Mouse Color Change the RGB lighting color on supported mice
Apply Mouse Effect Trigger breathing, color cycle, or solid effects
Set Logo Color Control the G logo lighting separately
Set DPI Indicator Change DPI zone colors for visual feedback

Triggers

Mouse Button Pressed Fires when programmable mouse buttons are clicked
Mouse Button Released Detects button release for toggle actions
DPI Changed Triggers when DPI setting is adjusted

Example Use Cases

Example 1 Example 2

# Pulse mouse RGB on donation
def Execute():
    amount = CPH.GetArg("donationAmount")
    if amount >= 10:
        CPH.LogitechSetMouseColor("#FFD700")
        CPH.LogitechApplyMouseEffect("Pulse", 5)
    else:
        CPH.LogitechSetMouseColor("#00FF00")
        CPH.LogitechApplyMouseEffect("Pulse", 2)
    return True

# Mouse button scene switcher
def Execute():
    button = CPH.GetArg("button")
    if button == "G4":
        CPH.ObsToggleSource("Webcam", True)
    elif button == "G5":
        CPH.ObsToggleSource("Webcam", False)
    return True

Headsets

Gaming headsets with LIGHTSYNC RGB and premium audio.

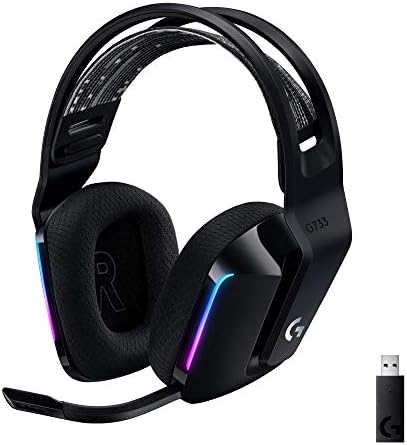

G733 LIGHTSPEED

Wireless gaming headset with customizable LIGHTSYNC RGB.

Front-facing LIGHTSYNC
LIGHTSPEED wireless
PRO-G 40mm drivers
29-hour battery

G Pro X 2 LIGHTSPEED

Pro-grade wireless headset with graphene drivers.

PRO-G graphene drivers
DTS Headphone:X 2.0
Blue VO!CE mic
50-hour battery

G535 LIGHTSPEED

Lightweight wireless headset for all-day comfort.

236g lightweight
LIGHTSPEED wireless
33-hour battery
Flip-to-mute mic

FaustBot Integration for Headsets

FaustBot controls LIGHTSYNC RGB on compatible Logitech G headsets, allowing you to sync headset lighting with stream events for a fully immersive setup.

Actions

Set Headset Color Change RGB lighting on headsets with LIGHTSYNC (G733)
Apply Headset Effect Trigger color cycle, breathing, or solid effects
Set Brightness Adjust headset RGB brightness level
Sync With Audio Enable audio-reactive lighting mode

Triggers

Headset Connected Fires when headset is powered on or connected
Headset Disconnected Detects when headset is turned off
Mic Muted Triggers when microphone is muted/unmuted

Example Use Cases

Example 1 Example 2

# Color headset based on stream status
def Execute():
    isLive = CPH.GetArg("isLive")
    if isLive:
        CPH.LogitechSetHeadsetColor("#FF0000")
    else:
        CPH.LogitechSetHeadsetColor("#0066FF")
    return True

# Flash headset on raid
def Execute():
    raiders = CPH.GetArg("raiders")
    if raiders >= 50:
        CPH.LogitechSetHeadsetColor("#FF00FF")
        CPH.LogitechApplyHeadsetEffect("Pulse", 10)
    return True

Speakers

Gaming speakers with immersive LIGHTSYNC RGB.

G560 LIGHTSYNC

Gaming speakers with screen-based LIGHTSYNC lighting.

240W peak power
DTS:X Ultra surround
Game-driven LIGHTSYNC
Bluetooth + USB

FaustBot Integration for Speakers

FaustBot provides full RGB control for the G560 LIGHTSYNC speakers, enabling screen sampling, audio visualization, and custom lighting effects synced to your stream.

Actions

Set Speaker Color Apply solid colors to the G560 rear lighting
Enable Screen Sampler Sync speaker lighting to on-screen content
Enable Audio Visualizer React lighting to audio output levels
Apply Speaker Effect Trigger color cycle, breathing, or wave effects

Triggers

Audio Level Changed Fires based on speaker output volume levels
Speaker Connected Detects when G560 is powered on
Mode Changed Triggers when lighting mode switches

Example Use Cases

Example 1 Example 2

# Sync speakers with stream alerts
def Execute():
    alert = CPH.GetArg("alertType")
    if alert == "subscriber":
        CPH.LogitechG560SetColor("#00FF00")
        CPH.LogitechG560ApplyEffect("Pulse", 3)
    elif alert == "donation":
        CPH.LogitechG560SetColor("#FFD700")
        CPH.LogitechG560EnableVisualizer(True)
        CPH.Wait(5000)
        CPH.LogitechG560EnableVisualizer(False)
    return True

# Game-reactive speaker lighting
def Execute():
    scene = CPH.GetArg("obsScene")
    if scene == "Gameplay":
        CPH.LogitechG560EnableScreenSampler(True)
    else:
        CPH.LogitechG560EnableScreenSampler(False)
        CPH.LogitechG560SetColor("#6366F1")
    return True

RGB Accessories

Complete your setup with LIGHTSYNC-enabled accessories.

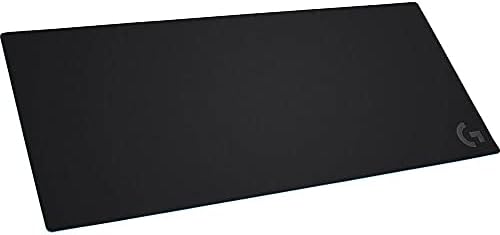

G840 XL Gaming Mouse Pad

Extra-large cloth gaming mouse pad.

XL desk coverage
Consistent surface texture
Rubber base
Moderate friction

POWERPLAY Wireless Charging

Wireless charging mouse pad with LIGHTSYNC.

Continuous wireless charging
LIGHTSYNC RGB
Cloth or hard surface
Compatible with G Pro/G502

FaustBot Integration for RGB Accessories

FaustBot integrates with Logitech G accessories including the POWERPLAY wireless charging pad, providing RGB control and status monitoring for a unified lighting ecosystem.

Actions

Set Mousepad Color Control POWERPLAY RGB border lighting
Apply Mousepad Effect Trigger wave, breathing, or color cycle effects
Sync All Devices Coordinate lighting across all connected Logitech G gear
Set Brightness Adjust overall LIGHTSYNC brightness

Triggers

Mouse Docked Fires when mouse is placed on POWERPLAY pad
Mouse Undocked Detects when mouse is lifted from pad
Battery Level Triggers at configurable battery thresholds

Example Use Cases

Example 1 Example 2

# Unified lighting on stream start
def Execute():
    CPH.LogitechSetAllDevicesColor("#6366F1")
    CPH.LogitechApplyAllDevicesEffect("Wave", 2)
    CPH.Wait(3000)
    CPH.LogitechSetAllDevicesColor("#00FF00")
    return True

# Battery warning indicator
def Execute():
    battery = CPH.GetArg("batteryLevel")
    if battery <= 20:
        CPH.LogitechSetMousepadColor("#FF0000")
        CPH.LogitechApplyMousepadEffect("Breathing", 0)
    elif battery <= 50:
        CPH.LogitechSetMousepadColor("#FFAA00")
    return True

Ready to Connect Your Logitech G Gear?

FaustBot makes it easy to integrate all your Logitech G hardware into powerful stream automations.

LIGHTSYNC Setup Guide View Logitech Actions
